概要

精密滚针导柱®为采用滚针的直线运动导柱，结构简单， 实现了“高刚性、高精度和低振动!!”

Million guide® is“highly rigid, highly accurate & low vibration”owing to its simple mechanism using needle rollers.
各部分名称 Part name
导柱轴、导套
【材质: 专用钢或马氏体不锈钢】

Bush & Post (Material: Special purpose steel or Martensitic stainless steel)

滚针 【材质: 专用钢】
Needle roller (Material: Special purpose steel)

预压量2μm~6μm的状态下出货。 Shipped with 2μm~6μm pre-load.

滚针套 【材质: 工程塑料或耐热工程塑料】

Retainer (Material: Engineering plastic or Heat-resistant engineering plastic)

5

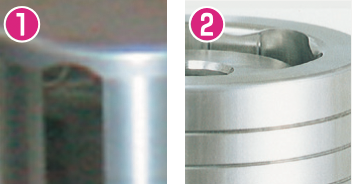

对刻印 Counter marks
导套下面和导柱轴法兰侧面的对刻印位置要对齐。 由于是在对刻印对齐的状态下进行最终精加工的，如果不对齐就无法使用。

Set the counter marks of the bush (bottom side) and the post flange (side face) at the same rotational position. You cannot use Million guide under the condition that the counter marks does not meet, since the final finish is made with the counter marks at the same position.

6
系列编号 Serial No.
导柱轴和导套上刻有特定的系列编号。本产品是对导柱轴和导套进行1对1管理、 生产的，不能随意组合使用。务必按系列编号进行组合。

The original serial numbers are carved on the post and the bush. Million guide is controlled and manufactured at the pair of the post and the bush, so you cannot use it with the different serial numbers. Check the serial number combination before usage.

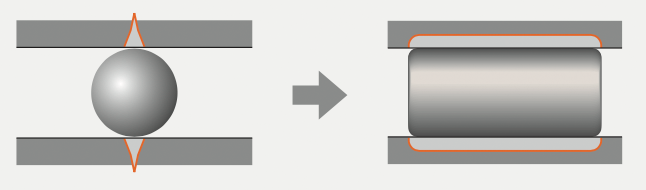

从点到线 Point to line

“ 从滚珠变为滚针 ”，通过采用滚针作为滚动体，实 现了高精度的直线运动性。直线运动导柱的“ 终极 形态 ”

“Ball to needle roller”, Million guide adopts needle rollers as rolling element and realizes highly accurate linear motion. This is the“ultimate form of linear guide”.

无侧隙、低噪音、长寿命、长行程“GBT系列” (轴导柱)

“GBT Series”(Shaft guide)is of no backlash, low noise and long life time with long stroke.
结构 Structure

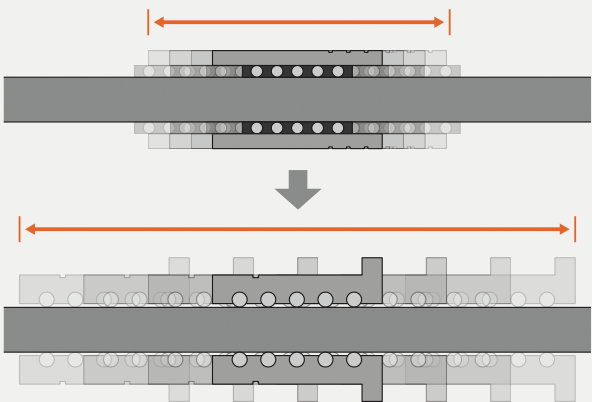

改进型滚针导柱 Evolutional roller guide

开发出了不使用滚针套而也可保持轴承的新结构，实现了长行程。
为满足客户需求而不断改进…

New structure of retainer-less roller follower in multi-line arrangement
Further evolution for customer needs
