通过提高刚性，实现了高 速化、缩短了生产节拍。

High speeding and reduced cycle time by increasing rigidity.

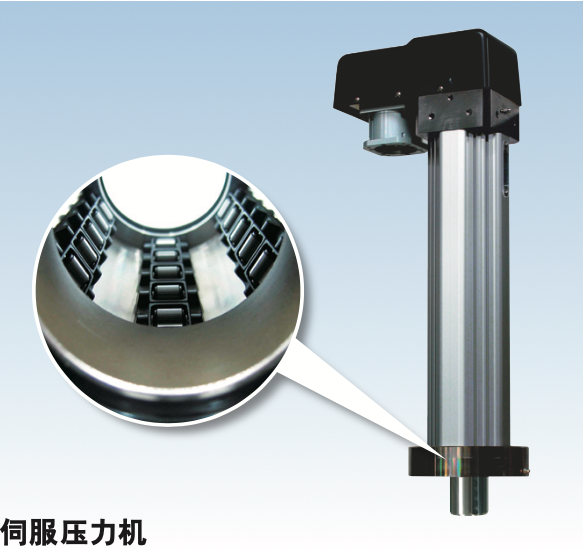

同时实现了高刚性和微小滚动阻力，抗偏载能力强，可精确地进行加压控制。

Both high rigidity and infinitesimal rolling resistance can bear offset load and secure accurate pressure control.

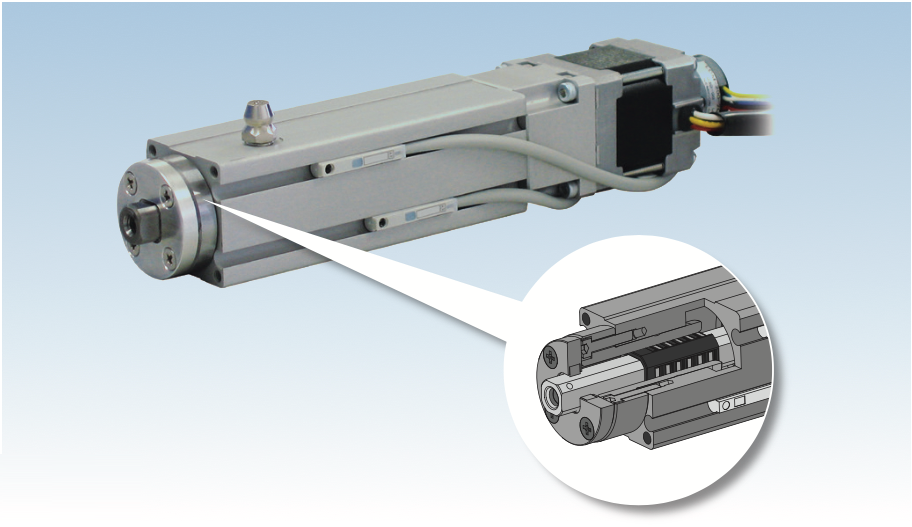

采用低振动导柱，可实现亚微米级的微小进给。在另外的“滚针导柱电 动缸产品目录”中，也作为组件销售。

Enables minute feeding of sub-micron order with its low vibration guide. On sale as a unit on the separate catalog "Million Actuator"

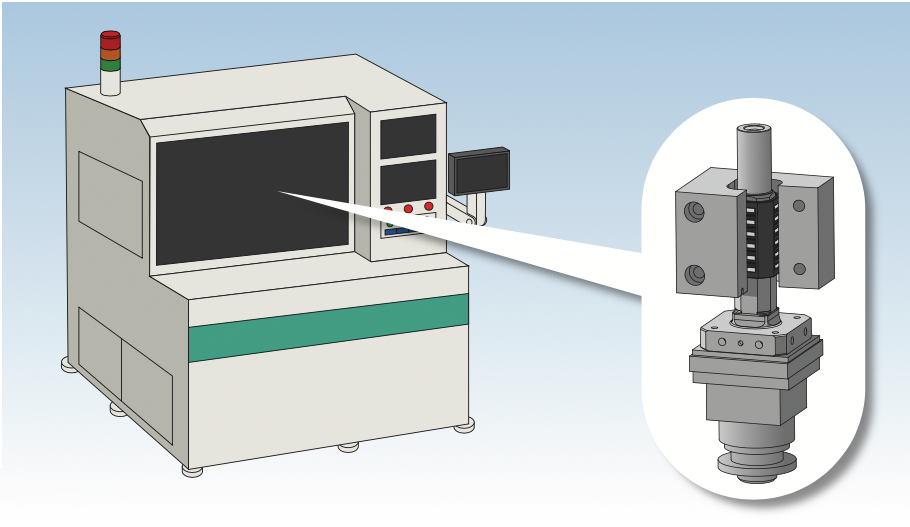

高刚性、低振动，可快速稳 定相机，缩短生产节拍。

High rigidity and low vibration make the camera statically determinate quicker, and lead to shorter cycle time.

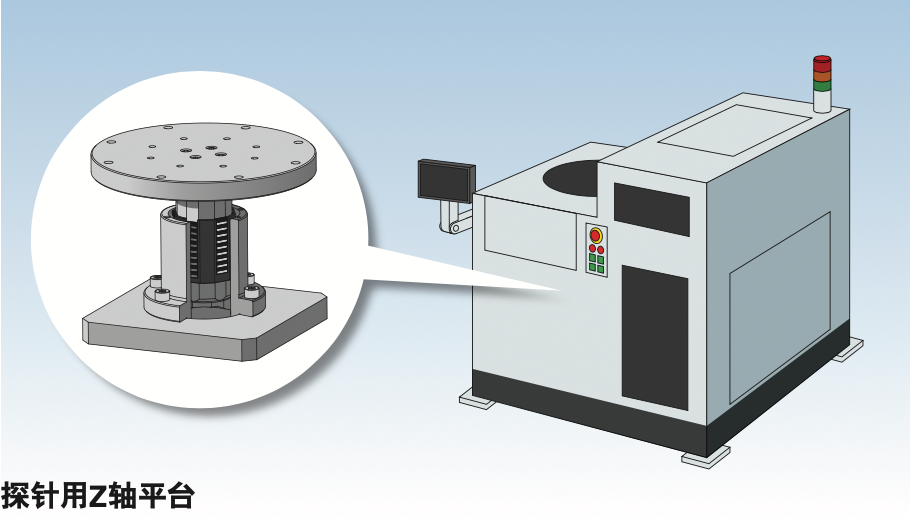

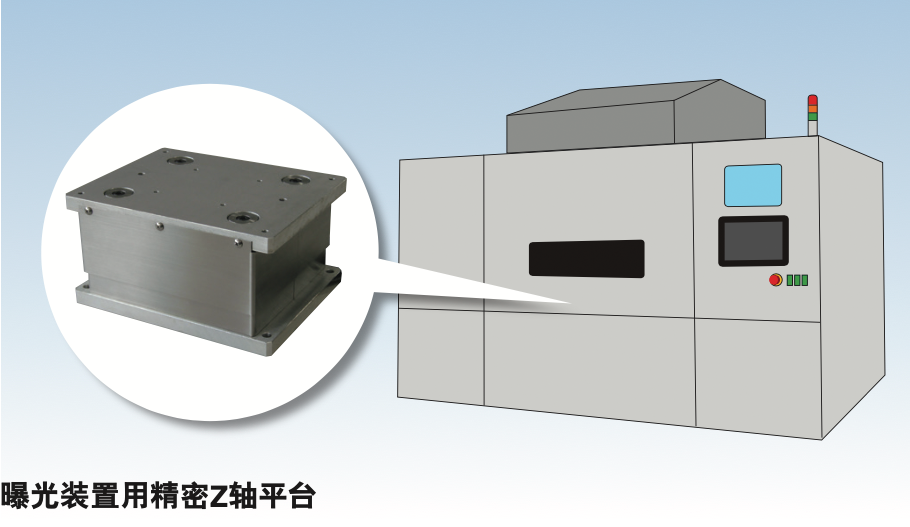

通过提高精度，实现了亚微米级的定位。

Accuracy improvement enables sub-micron order positioning.

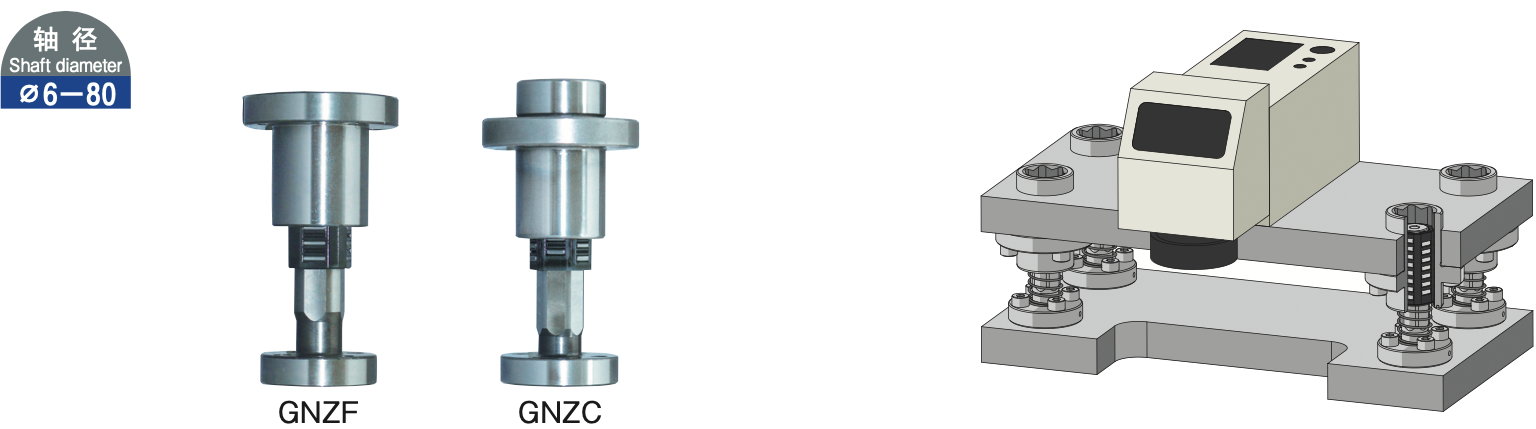

通过提高导柱刚性，平台上作用有偏载时可减小弯曲。

Higher guide rigidity reduces the deflection caused by the offset load on the stage.

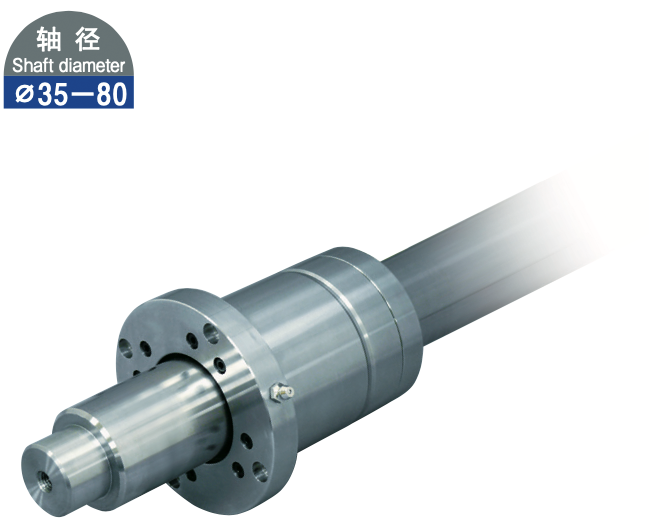

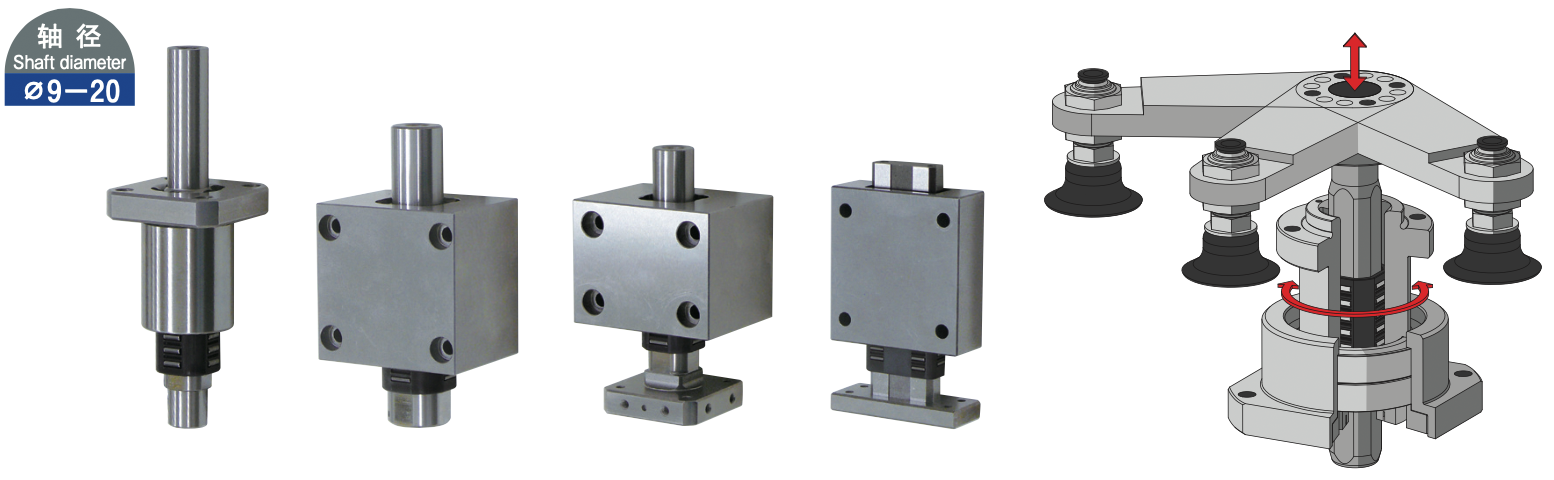

通过在空心轴上组装滚珠丝杠，实现了良好的 平衡性。在另外的“滚针导柱压力机产品目录” 中，也作为组件销售。

Well balanced for a ball screw assembled in a hollow shaft. On sale as a unit on the separate catalog "Million Press"

通过增加刚性，提高了位置重复精度。可高速运转，缩短了生产节拍。

Increased rigidity improves repeatability, and leads to high speeding and reduced cycle time.

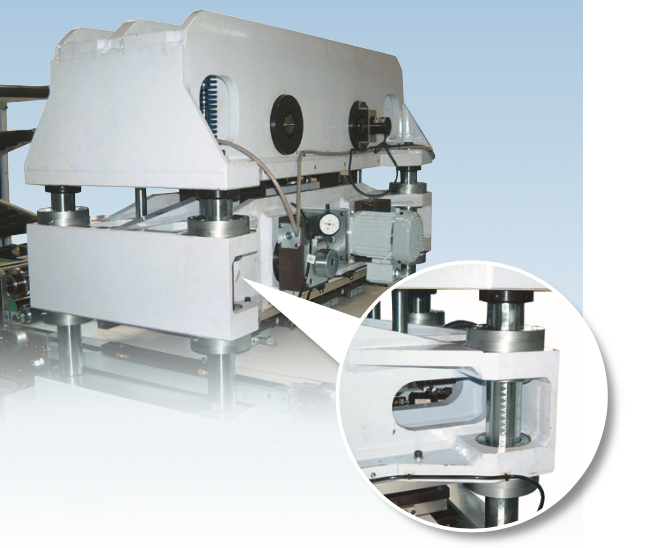

通过增加刚性，提高了压力机下死点精度。

Increased rigidity improves the bottom dead center accuracy of press machine.

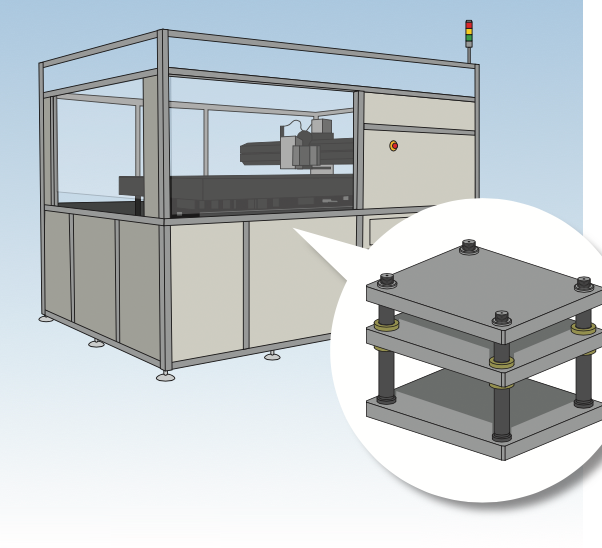

长行程，适用于大型平台。通过提高定位精度，降低了不良率。

It is the best for the large stage of long stroke. Improved positioning accuracy reduces product defect rate.

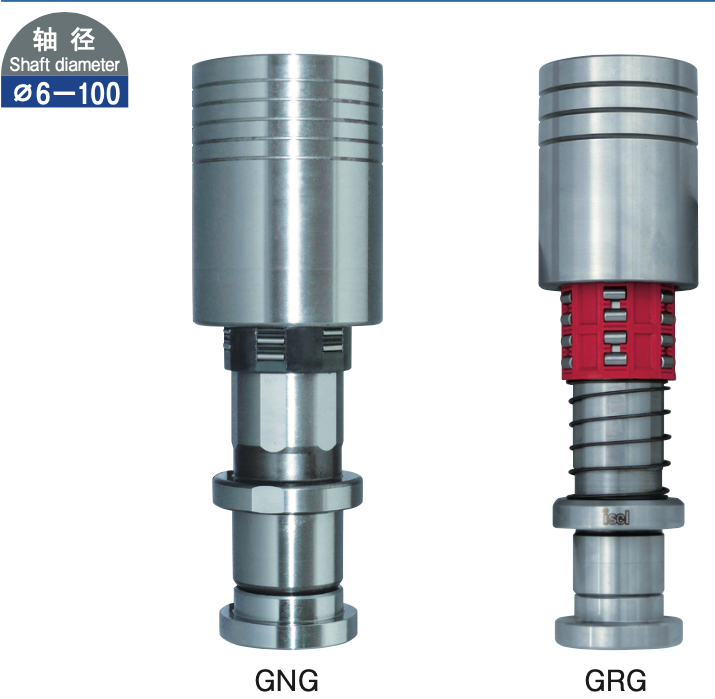

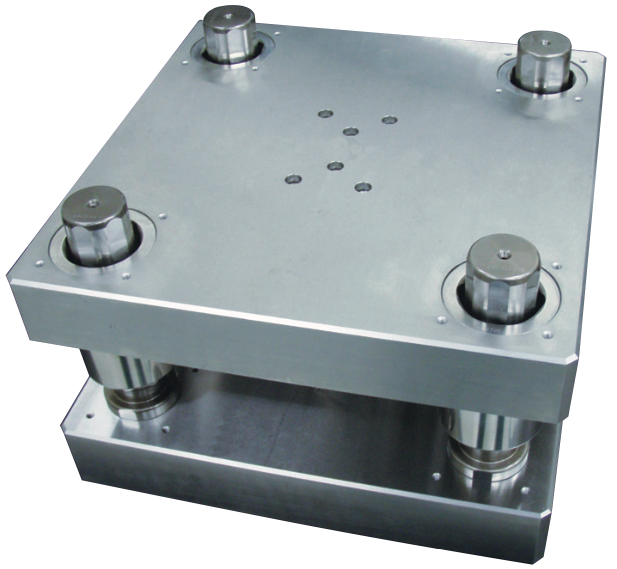

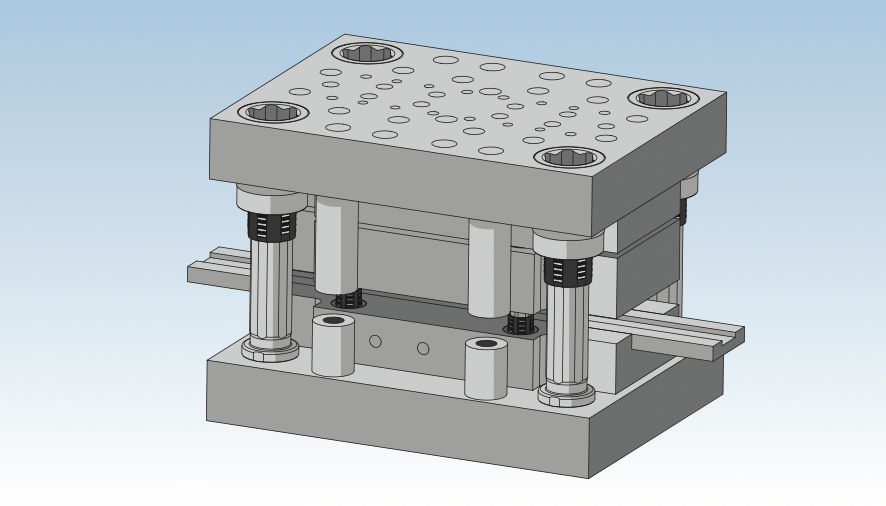

产品无毛刺，提高了质量。重新配置时再现性优异，缩短了设置时间。

Improved quality without burr on the product. Better repeatability of die-set assembly reduces setup time.

通过提高刚性和精度，上下模的间隙在整个圆周上可保持均匀，从而提高产品精度。另外，减少了上下模的崩角现象，延长了模具的再磨削周期。

Increased rigidity and accuracy keeps the punch and die clearance even in all directions, leading to product accuracy improvement. Furthermore, decreased punch and die chipping and prolonged die-set regrinding cycle.

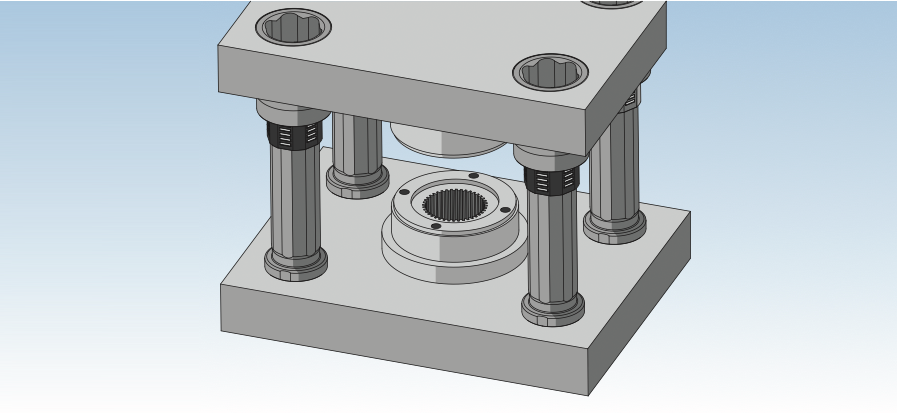

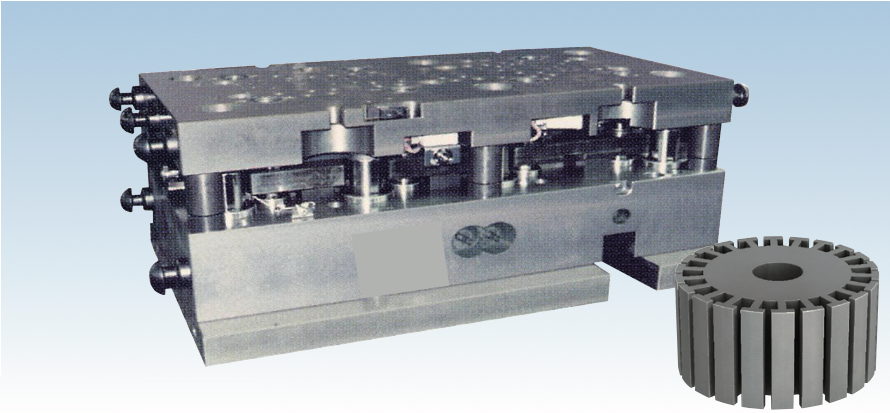

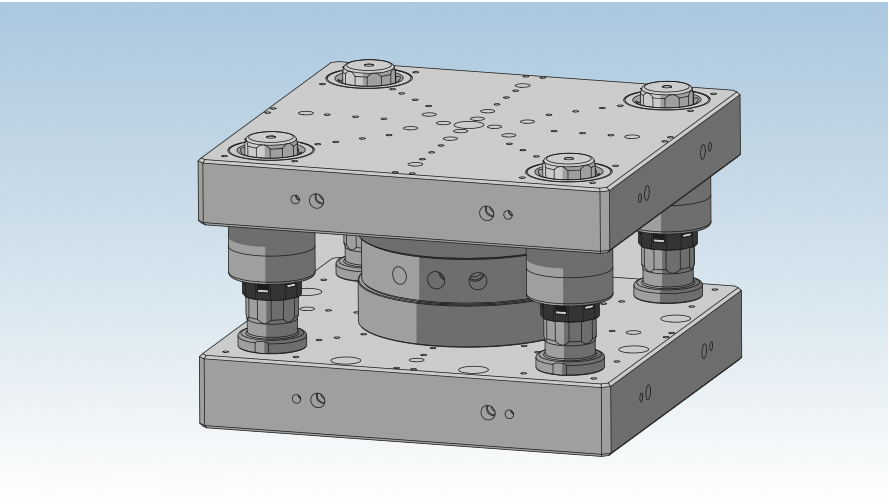

大直径高刚性导柱，适用于大型模架。可实现高精度精密冷锻。

High rigidity guide of large diameter is ideal for large die set, leading to high precision cold forging.

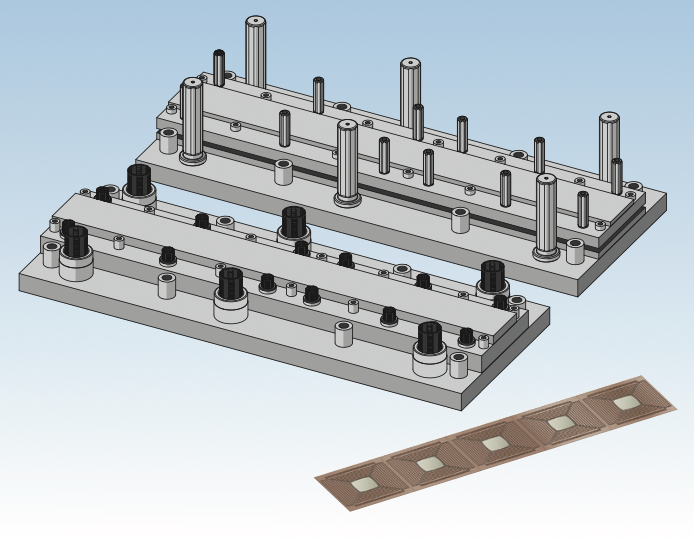

也可进行超细微冲压。降低不良率和离散性，确保超精密 半导体元件的稳定生产。

Applicable for superfine stamping, supporting stable manufacturing of ultra precision semiconductor parts, with decreased defect rate and quality variation.

使用孔径φ0.3的上模，一次冲压“674个孔”的模具。可减少微细上模的损坏，延长上模寿命。

A die stamping 674 holes with a punch of its hole diameter 0.3mm at once. Decreased small diameter punch damage and extended punch life.

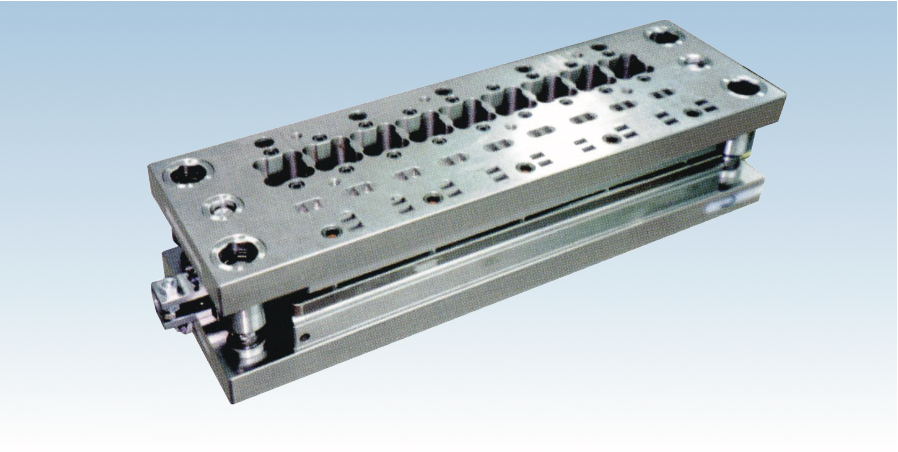

可适应高达2000spm的冲压速度，并可延长导柱寿命。

Supports the severe press speed of 2000 spm and enables to extend guide life.

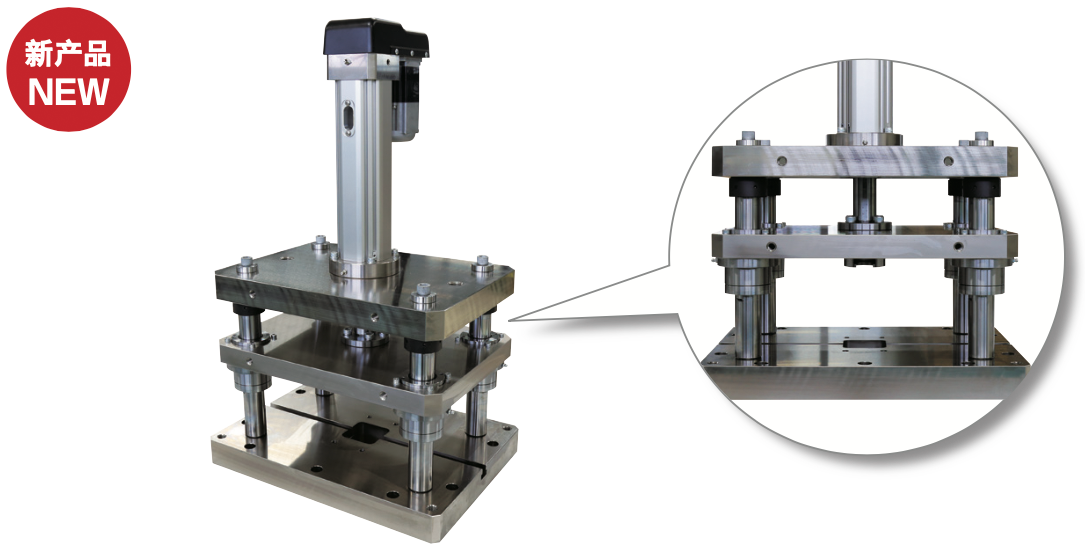

使用高精度、高刚性导柱和精密加工零件。利用独创的装配技术，发挥 100%的能力。可保持亚微米级的下死点重复精度，实现高精度批量生产。

Employs high precision, rigidity guide and precision parts. Our original assembly expertise demonstrates their performance, and maintains the sub-micron bottom center repeatablity, and results in high quality mass production.

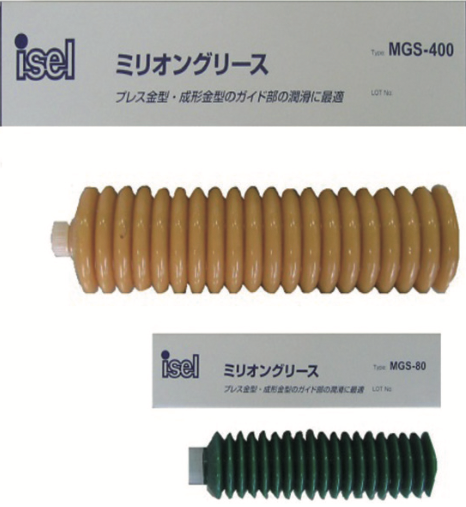

润滑性、极压性、防锈效果优异，滚针导柱专用的脲基润滑脂。

Urea-based grease for the Million guide, is good at lubricating, extreme- pressure, and antirust effect.

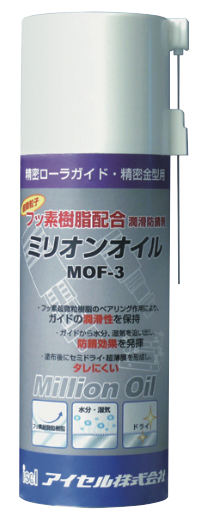

润滑性、防锈效果优异，不易滴流的滚针导柱专用氟树脂混合润滑油。

Good at lubricating and antirust, combined with fluorine resin for Million guide does not easily sag.
